Product introduction

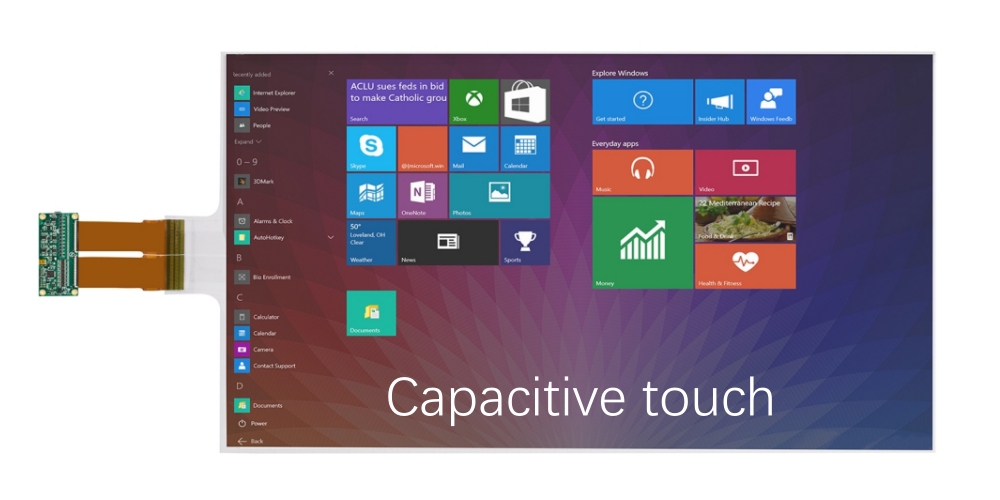

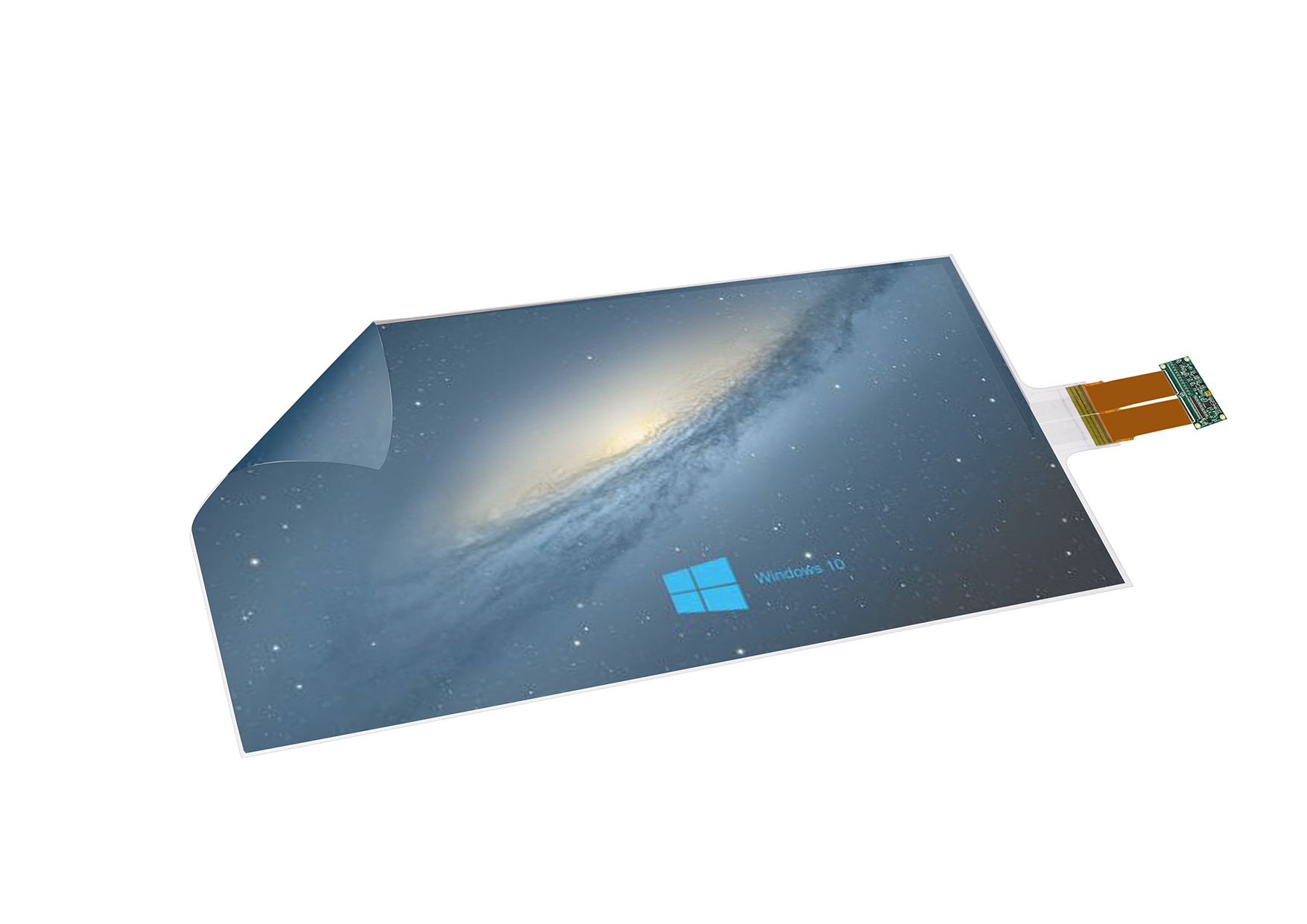

Capacitive touch film, whose technical principle belongs to the projection capacitive screen, is composed of two transparent films with a grid matrix layer made of metal wires sandwiched in between.  Each matrix forms a sensing unit.  Capacitive touch film is the only one among all touch methods that can achieve curved surfaces, transparency, water resistance, stain resistance, light interference resistance, no protruding edges on the surface, and touch through glass.  It is a brand-new touch method.


Parameter type Product specification
Touch size 10.4"~110"
Interpolation resolution 32767x32767
Touch point number 2-40 point
Support customization Support
Response time 6-15ms
Power supply mode USB power supply

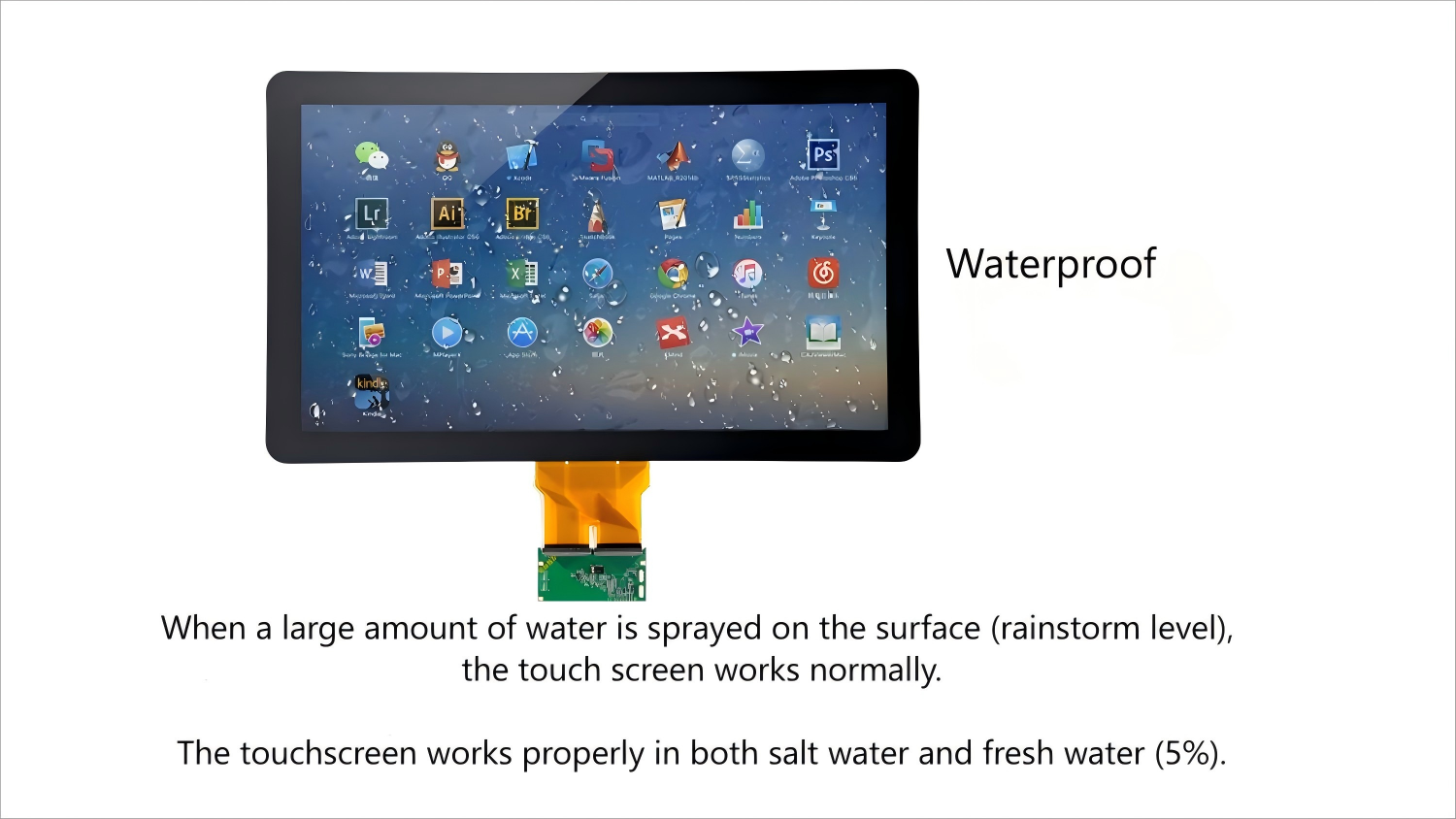

Supports waterproofing Support

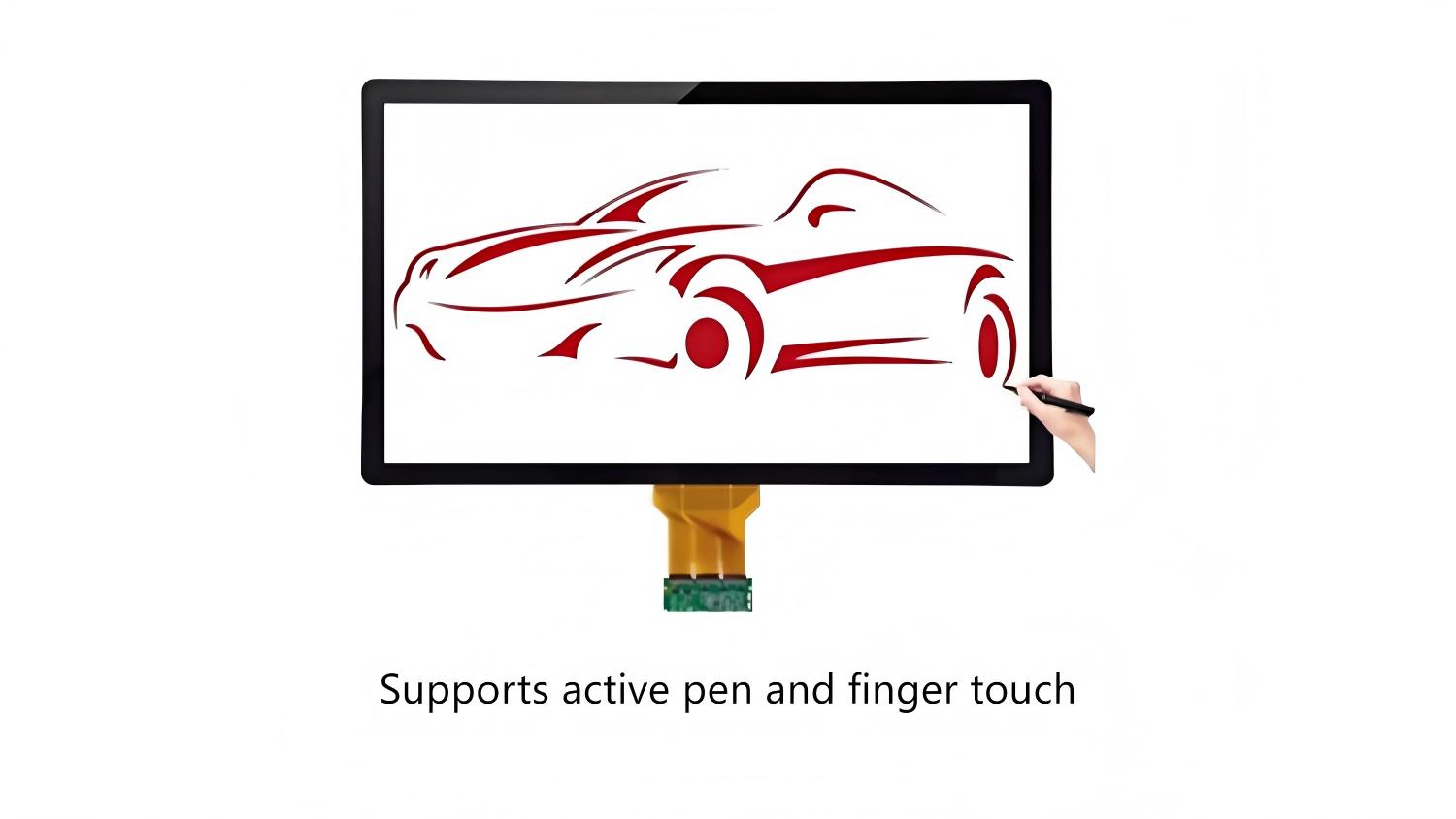

Input method finger, special pen touch induction medium
Output mode coordinate value
Anti-light performance All-angle resistance to strong light environments
Working voltage typical value +5V DC, allowable range +4.75V~+5.25V
Power waste
 <1.5W
Sensing distance
 ≤10mm
Driver
Driver free
